812-886-0360This bridge built over the Patoka River near Winslow Indiana, included 18″ shell piling to support the bridge, which has 150′ long precast concrete bulb tee beams. Each beam was not only 150 ft long but also weighed in at 160,000 lbs.
This bridge replaced an old through truss bridge which unfortunately was not able to be salvaged.
This job also required a slight change in the road alignment, as the old bridge was at an angle to the road to cross the river at a zero skew, so the new bridge was built on a skew to keep the roadway straight
-

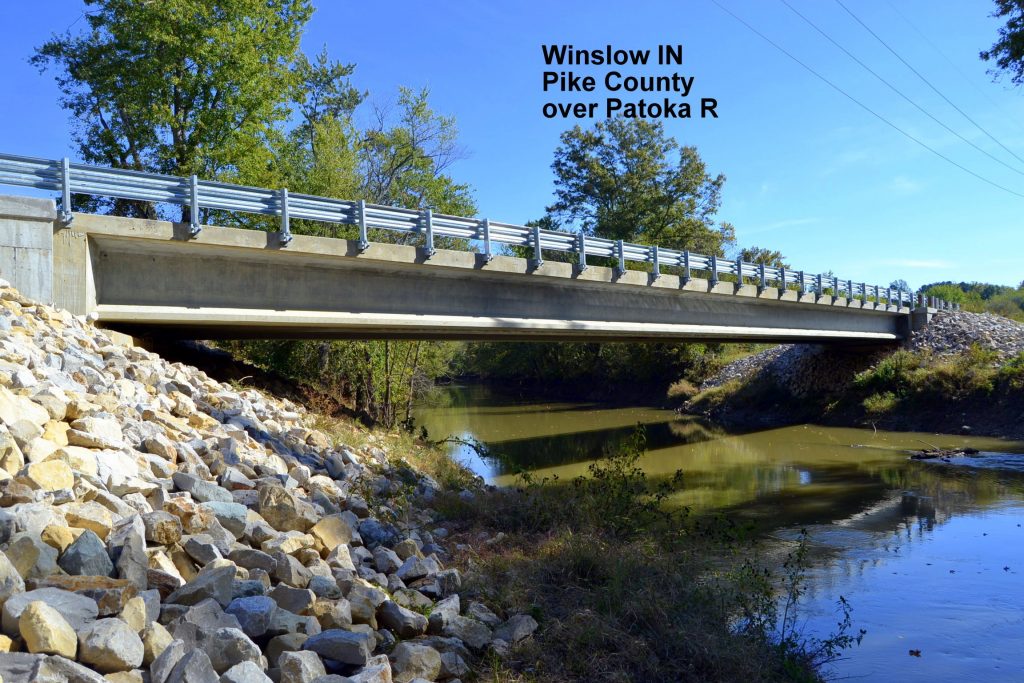

- Pike county road over Patoka River
-
- 150′ long precast concrete beam
-
- Setting one of the 150′ long, 160,000 lb precast concrete beams
-
- Sodded ditch along the new roadway
-
- Looking north from the south end of the job
-
- A before pic of the county road before real construction starte
-
- The old through truss bridge that is about to be replaced
-
- A road under construction
-
- Backing in one of the precast concrete beams
-
- dirtwork leading up to the new bridge
-
- New road construction
-
- A bridge under construction
-
- There must have been a problem here
-
- An icy Patoka river
